Unstructured data pipelines for vector ETL turn PDFs, scans, slides and reports into clean, structured document elements before any embeddings get generated. The stages: text extraction or OCR, layout analysis, parsing, normalization, chunking, metadata preservation and vector loading. Together they let retrieval systems find the precise passage, keep its context and cite where it came from.
Retrieval disappointing? People tend to blame the embedding model. Look upstream first. If extraction scrambles columns, flattens tables or cuts content loose from its page and section, every later search and generation step works from incomplete context.

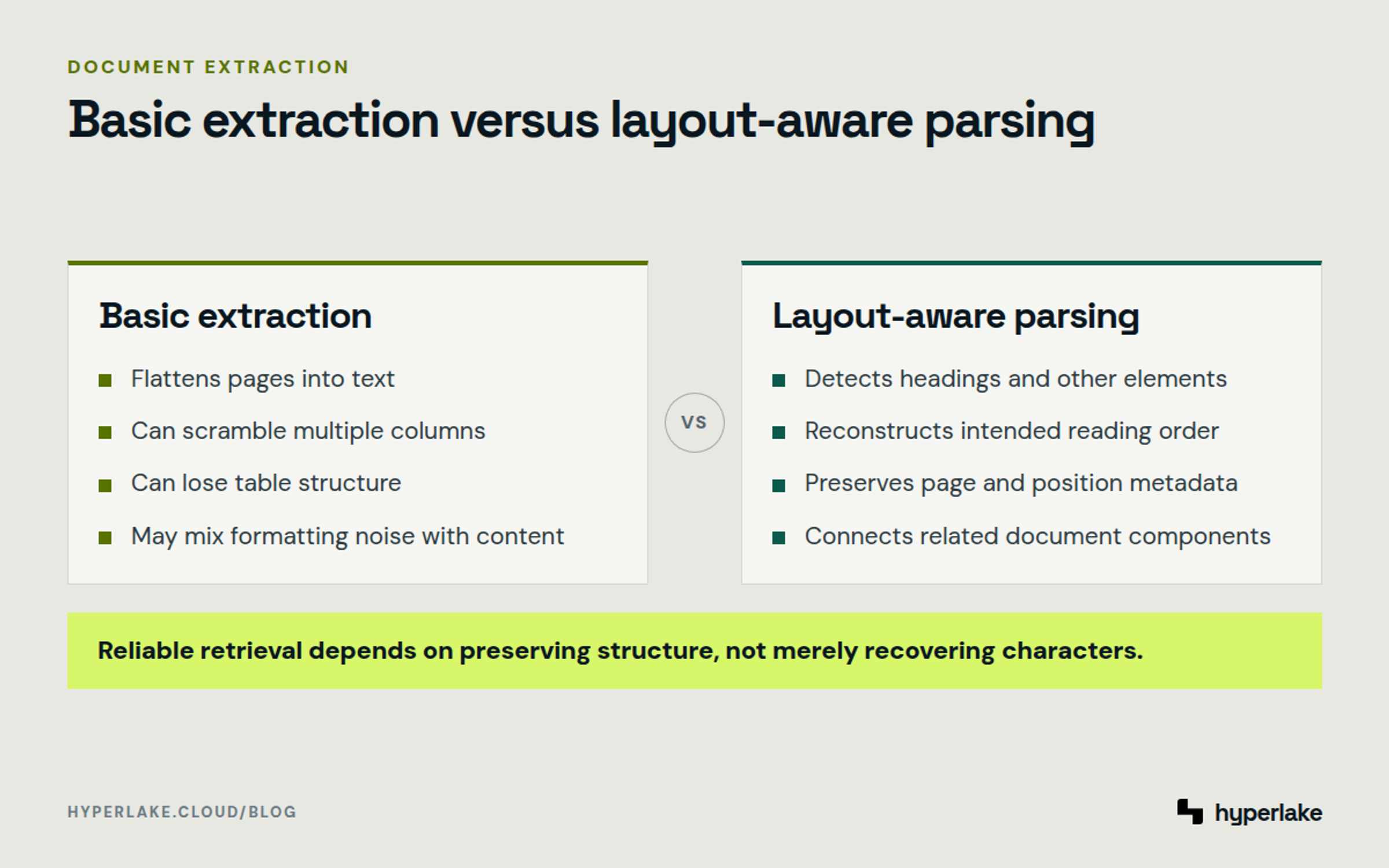

Why does basic text extraction fail on complex documents?
Because it sees a page as a stream of characters, and plenty of business documents carry their meaning in layout. Skip the spatial and structural analysis and the text may technically all be there while the relationships between its parts are gone.
You've probably met the usual suspects:
- Multicolumn pages read straight across instead of down each column.
- Tables collapsing into loose values with no row or column relationships.
- Headers, footers and page numbers landing in the middle of real passages.
- Captions separated from the images or tables they describe.
- Scanned pages with missing or wrong text when OCR is weak.
The fix is layout-aware parsing, which combines OCR, visual layout analysis and document understanding techniques. It picks out headings, paragraphs, tables, images and other regions while keeping reading order and relationships intact. Remember this when you design systems for structured and unstructured data: the visual organization of a page often carries information that plain text can't hold alone.

What is an unstructured data pipeline for vector ETL?
A series of processing stages that converts visually complex files into standard records search and AI applications can use. "Vector ETL" is just the familiar extract, transform and load pattern, applied to documents and their embeddings.
Walk through the three verbs. Extract reads native text where it exists and runs optical character recognition on scanned pages or image-based regions. Transform identifies document elements, restores reading order, strips formatting noise, cuts retrieval-sized chunks and attaches metadata. Load generates the embeddings and writes vectors, text and metadata to a vector database or retrieval index.
A parsing engine, then, does a lot more than open files.
Its output might treat every heading, paragraph, table, caption or image as its own element, each with content, type, source, page, section and position. Downstream systems get one consistent interface across file formats that otherwise have nothing in common.
How does a document become vector-searchable?
Its content is extracted, rebuilt into logical elements, cleaned, split into meaningful segments, embedded and loaded with metadata, and at every stage there should be a path back to the original file.
A typical unstructured data pipeline runs five steps:
- Ingest and classify the file. Detect the format, capture source information, and decide whether it needs native extraction, OCR or both.
- Extract and analyze the layout. Recover text, identify regions like titles, paragraphs, lists, tables and images, and rebuild the intended reading order.
- Parse and normalize the content. Convert elements into a standard representation, remove repeated formatting noise, normalize characters and keep meaningful boundaries.
- Create retrieval chunks. Don't arbitrarily split headings from their paragraphs or table titles from their data; structure-aware chunking patterns help line segments up with the document's own organization.
- Generate embeddings and load the index. Store each vector with its source text and structural metadata so retrieval results stay explainable and usable.
Finishing a run doesn't prove the pipeline did its job. Our advice: open a handful of representative documents and check by hand. Is the reading order right? Did the tables survive? Do section boundaries and chunks hold together, and do retrieved passages trace back to the correct page?

Which metadata should parsing engines preserve?
Enough to locate, interpret, filter and cite every extracted element. At a minimum that usually means the source document, page reference, section hierarchy, element type and positional information.
Why each one? Section titles supply context a chunk may not repeat. Page references support citations and let a person verify the answer. Bounding boxes or other positional data tie extracted text back to its spot on the page, and element types keep narrative text apart from tables, headings, captions and images.
Retrieval systems can also use the same metadata to narrow results by document, section, content type or other approved attributes.
Then there's the payoff at answer time. When a generated answer cites a source, the application can point to the relevant page or section, which beats an untraceable block of text every time. Hold on to this structure and vector databases become far more useful for enterprise search, retrieval-augmented generation and knowledge management.
How Hyperlake helps
Hyperlake lets teams assemble data and knowledge services, model services, applications, policies and monitoring in infrastructure they or their clients control. Depending on the workload, that can include document-processing applications alongside vector engines such as Qdrant or Milvus, with governed identity-to-data access, observability and lifecycle controls. To discuss an unstructured data pipeline for a specific environment, talk to our team.
Frequently asked questions
Can OCR alone prepare scanned PDFs for vector search?
No. OCR gets the characters back from scanned pages, but it doesn't necessarily rebuild the document's logical structure. You also need layout analysis, reading-order detection, element classification, normalization, chunking and metadata preservation. Those stages keep columns, tables, headers and captions from turning into misleading text sequences.
What format should a document parsing engine produce?
A consistent structured representation that downstream components can handle whatever the original file type. Each element should carry its text or a content reference, element type, source document, page, section and any positional metadata available. JSON or another machine-readable record format usually works, though the exact schema should fit the retrieval application.
Should tables be embedded as plain text?
You can convert tables to text for embedding, but flatten them carelessly and the row, column and header relationships disappear. Keep the original table structure and relevant page metadata, then build a representation that suits the queries you expect. Some applications index table summaries, rows or sections separately, with a link back to the source table.
