Tensor parallelism splits matrix operations within a neural network layer across GPUs; pipeline parallelism assigns sequential layer groups to different GPUs; and sequence parallelism partitions activations along the token dimension. Together, these methods let models exceed one device’s memory and compute limits, but each introduces different communication, scheduling, and utilization tradeoffs.
These choices affect whether large-model training and inference use available hardware efficiently or lose time to communication, memory pressure, and idle processors. The video above walks through the core ideas.
How does tensor parallelism split a model layer?
Tensor parallelism divides an individual layer’s mathematical operations across multiple processors. Each GPU computes part of the same matrix multiplication, typically by partitioning weights and intermediate tensors along rows or columns.
The partial results must then be exchanged or combined before computation can proceed. Operations such as all-reduce or all-gather make tensor parallelism dependent on fast, low-latency interconnects, especially when synchronization occurs several times per layer.
This method helps when a layer or its associated computation is too large for one GPU. Its main tradeoff is communication: adding processors can increase aggregate compute and memory capacity, but frequent synchronization may offset those gains if devices are poorly connected or workloads are too small.
How does pipeline parallelism divide network layers?
Pipeline parallelism places sequential groups of model layers on different GPUs. Activations move from one stage to the next during the forward pass, while gradients travel back through those stages during training.
Training systems commonly divide a batch into microbatches so different pipeline stages can work concurrently. Even then, stages may sit idle while waiting for input or gradients, creating gaps known as pipeline bubbles. Uneven stage workloads make these bubbles worse because the slowest stage limits the entire pipeline.

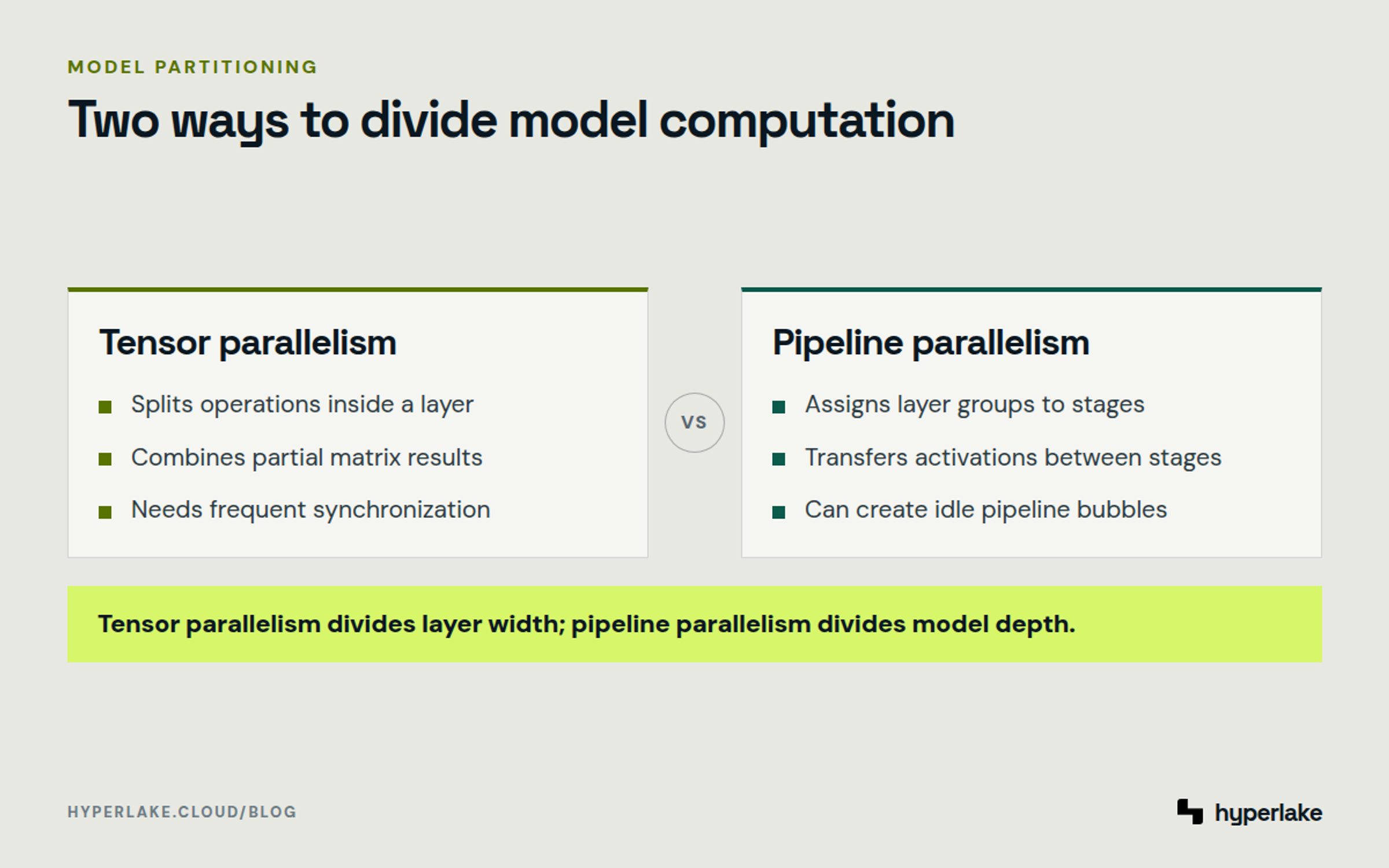

Unlike tensor parallelism, which divides work inside a layer and communicates frequently, pipeline parallelism divides the model by depth and usually transfers activations between stage boundaries. Effective scheduling and balanced layer placement are therefore central to good utilization.
How do sequence and context parallelism handle long inputs?
Sequence parallelism partitions activation tensors along the sequence or token dimension. It reduces per-device activation memory, which becomes increasingly important during training as input sequences grow longer.
The exact operations distributed this way depend on the framework, but the goal is to prevent every processor from holding the entire sequence’s intermediate state. It is distinct from data parallelism, where each replica processes different examples while retaining a full model copy.
Context parallelism is closely related but commonly focuses on distributing long-context attention work across processors. During inference, it can divide attention computation and key-value cache storage so one device does not carry the entire context. Techniques such as chunked prefill and FlashDecoding address other parts of long-context serving and can complement distributed execution.
How are parallelism strategies combined?

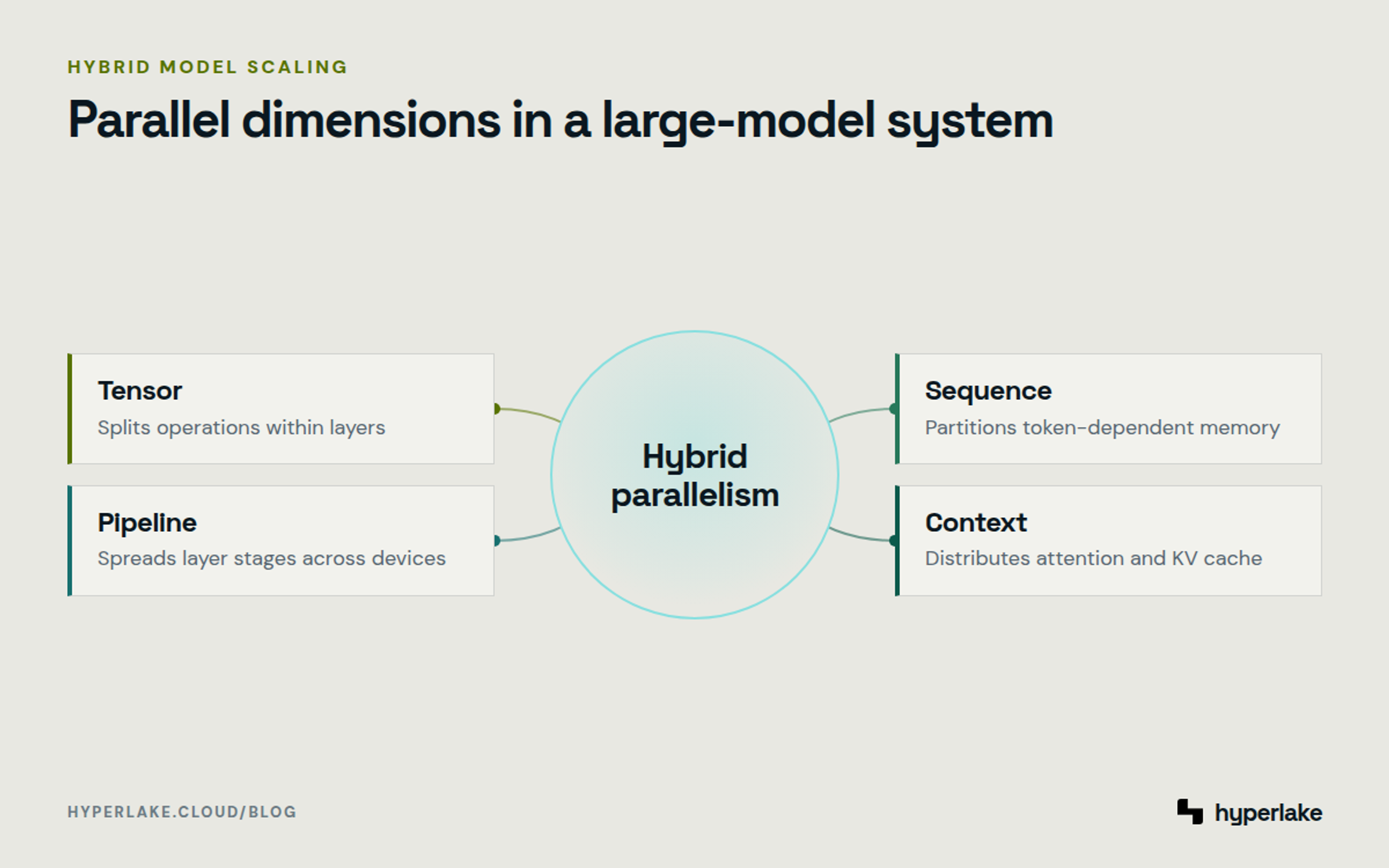

Large foundation models often use several parallel dimensions at once. Tensor parallelism can split layers within a node, pipeline parallelism can spread layer stages across nodes, and sequence or context parallelism can distribute token-dependent memory and attention work.
This creates a multidimensional processor grid rather than a single partition. Distributed frameworks may help configure placement, scheduling, and communication, but teams still need to benchmark the model, sequence lengths, batch patterns, network topology, and available memory.
The best configuration minimizes memory pressure without letting synchronization or pipeline bubbles dominate execution. Training and inference may need different layouts because backward passes, key-value caches, latency goals, and batching behavior create different bottlenecks. Model partitioning also operates below serving mechanisms such as dynamic batching, described in this overview of Triton Inference Server deployment.
Key takeaways
- Tensor parallelism divides matrix operations within individual neural network layers.
- Pipeline parallelism assigns sequential layer groups to devices but can create idle pipeline bubbles.
- Sequence and context parallelism reduce memory pressure from long token sequences, attention, and key-value caches.
- Hybrid configurations can scale very large models, provided communication and scheduling costs remain manageable.
How Hyperlake helps
Hyperlake can assemble private AI environments with selected compute, open-model serving through KServe, data services, policies, observability, and lifecycle controls, subject to the deployment and validated integrations. Teams can deploy these environments in their own or their clients’ infrastructure while retaining control of models, data, applications, and keys; operational procedures vary by engine and solution pack. To discuss an appropriate model-serving or training environment, talk to our team.
Frequently asked questions
Which parallelism method should a team use first?
Start with the bottleneck. Tensor parallelism fits layers that exceed one GPU’s capacity, pipeline parallelism fits models that divide cleanly into balanced layer stages, and sequence parallelism targets activation memory from long inputs. Hardware topology also matters because tensor parallelism generally needs more frequent, lower-latency communication.
Can model parallelism be combined with data parallelism?
Yes. A system can create multiple data-parallel replicas while using tensor, pipeline, or sequence parallelism within each replica. This combination increases aggregate throughput and allows each replica to host a model that would not fit on one GPU, but it adds synchronization, placement, and memory-management complexity.
Does adding more GPUs with model parallelism always improve speed?
No. More GPUs add compute and memory capacity, but they also introduce communication and coordination costs. Small workloads, slow interconnects, imbalanced pipeline stages, or frequent synchronization can leave processors idle and reduce scaling efficiency, so teams must measure the complete workload rather than GPU count alone.
Is sequence parallelism the same as context parallelism?
Not exactly. Sequence parallelism broadly partitions sequence-oriented activations to reduce training memory, while context parallelism commonly distributes attention computation and key-value cache responsibilities for long contexts. Terminology and implementation details vary across frameworks, and the two techniques can be related or combined.
