Robot simulation vs reality is the gap between behavior predicted in a virtual model and behavior produced by physical sensors, actuators, mechanics, timing, and control software. Closing it requires validating coordinate frames, dynamics, latency, limits, and safety controls progressively on real hardware rather than assuming simulated success will transfer directly.
This matters because one incorrect assumption can turn a promising controller into an immediate mechanical failure, while disciplined testing makes failures smaller and easier to diagnose. The video above shows the robot’s progression from simulation to physical walking.
Why does simulated robot behavior differ from reality?

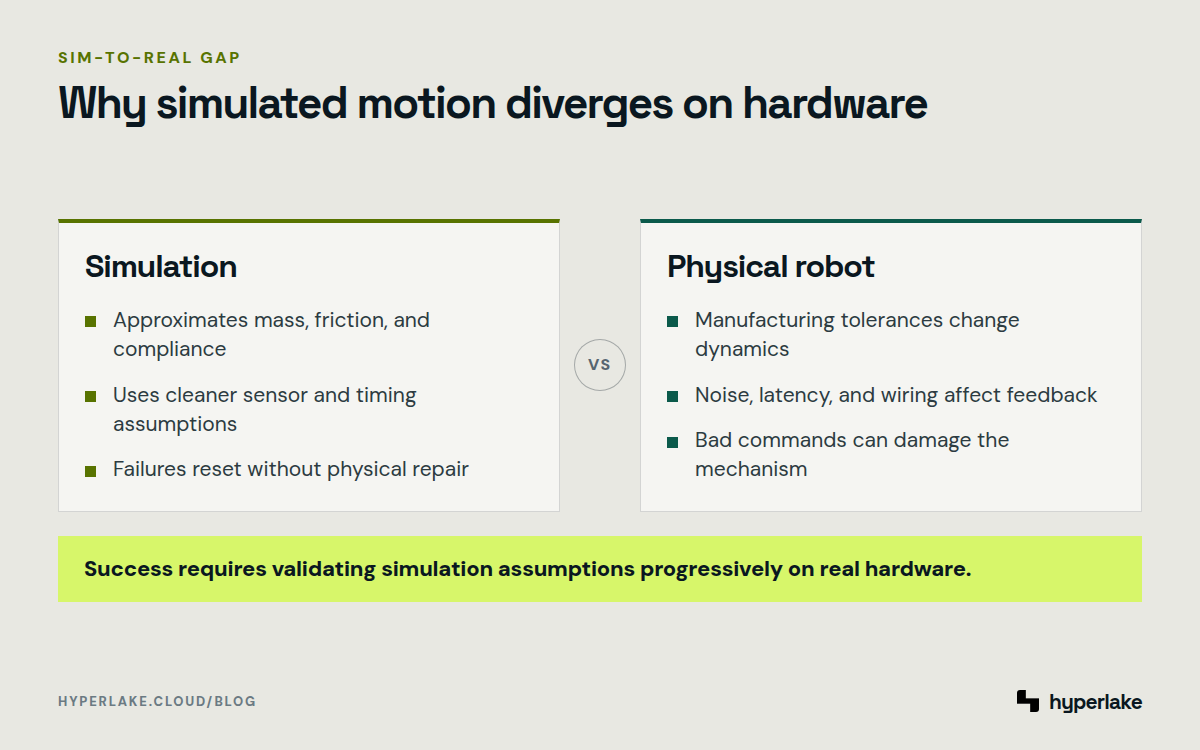

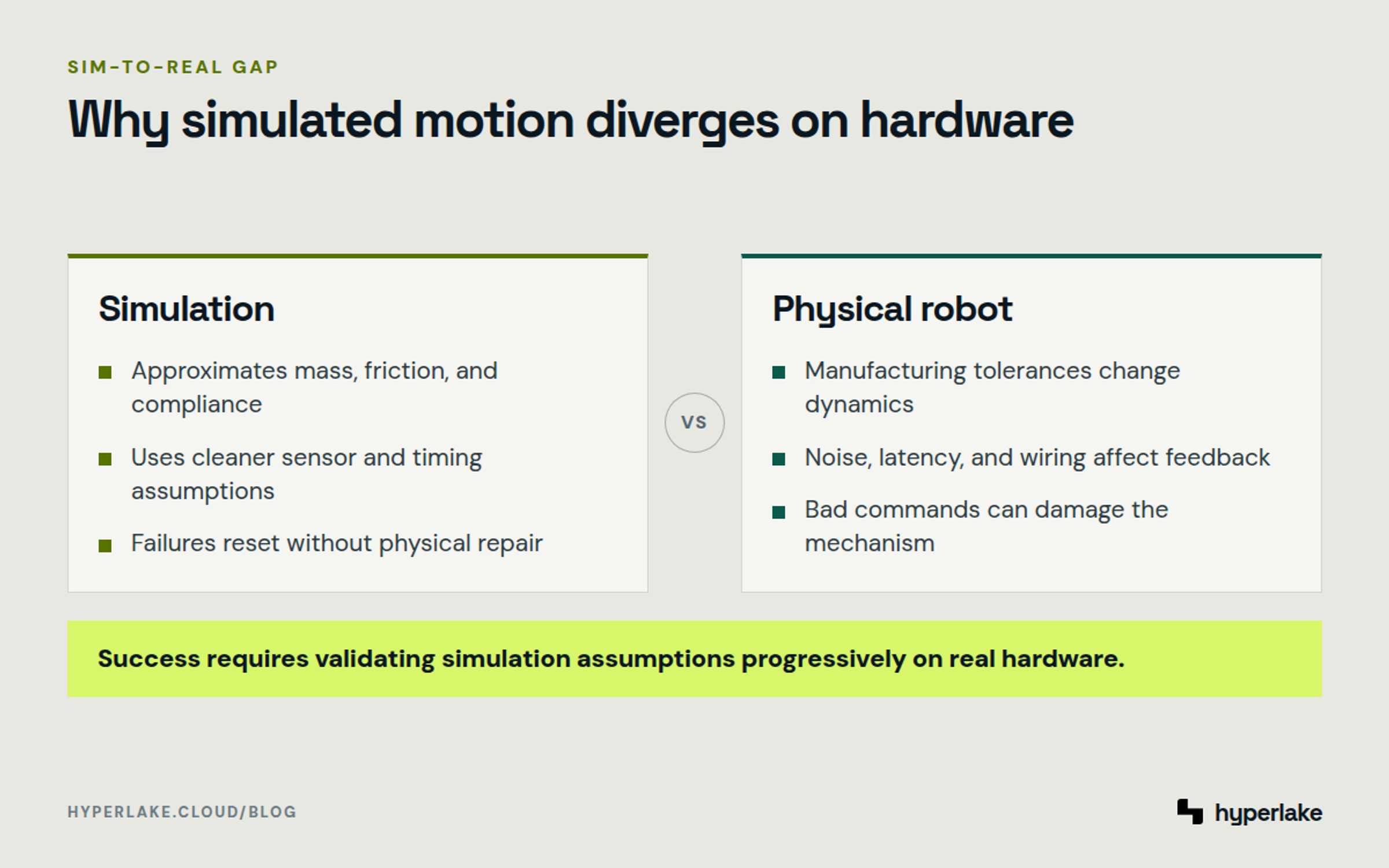

A simulation approximates the robot and its environment, while the real machine exposes every modeling error and implementation detail. Even a controller that appears stable in simulation may fail when transferred without validation.
A walking robot is a compound AI system whose behavior depends on multiple interacting elements:
- The simulated mass, center of gravity, friction, backlash, and structural compliance may not exactly match the hardware.
- Real sensors introduce noise, bias, calibration errors, and communication delays.
- Actuators have torque limits, temperature constraints, response delays, and behavior that changes under load.
- Coordinate frames, axis directions, units, and sign conventions can differ between the simulator, firmware, and control software.
Simulation failures can be reset without replacing a component. On a physical robot, the same incorrect command can break a leg, damage a cable, or create a safety hazard. Teams can make simulation more representative by varying parameters such as mass, friction, latency, and sensor noise, but hardware testing remains necessary.
Why did an inverted IMU axis cause the robot to break?
The robot’s IMU data was inverted on the Z-axis, so the controller interpreted the robot as being upside down. It responded with extremely fast motions that broke both legs in less than half a second.
An inertial measurement unit estimates orientation and motion using accelerometers and gyroscopes. A sign error, incorrect mounting transform, or mismatched coordinate convention can reverse the controller’s understanding of gravity and pose. If the control loop trusts that incorrect state, it may issue aggressive commands in an attempt to correct a problem that does not exist.
The motion happened too quickly for the operator to stop it manually. Afterward, the visible damage included broken legs and uncertainty about whether a wire had also been damaged. The incident shows why sensor transformations are safety-critical configuration, not minor data-cleaning details.
How should teams test a walking robot safely?
Teams should move from software checks to constrained hardware trials in deliberate stages. Each stage should limit the energy, duration, and physical range of a possible failure before allowing more autonomous movement.

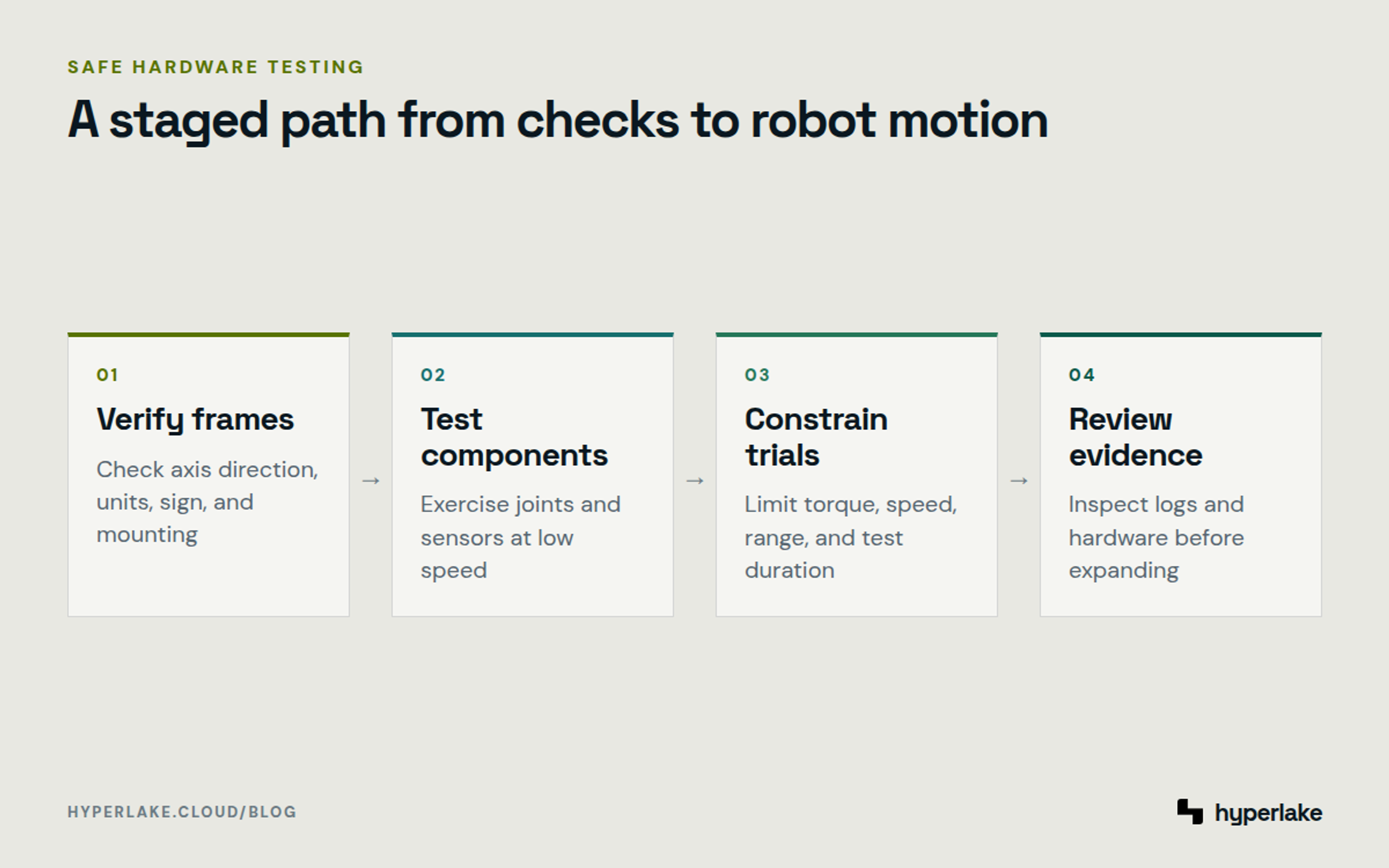

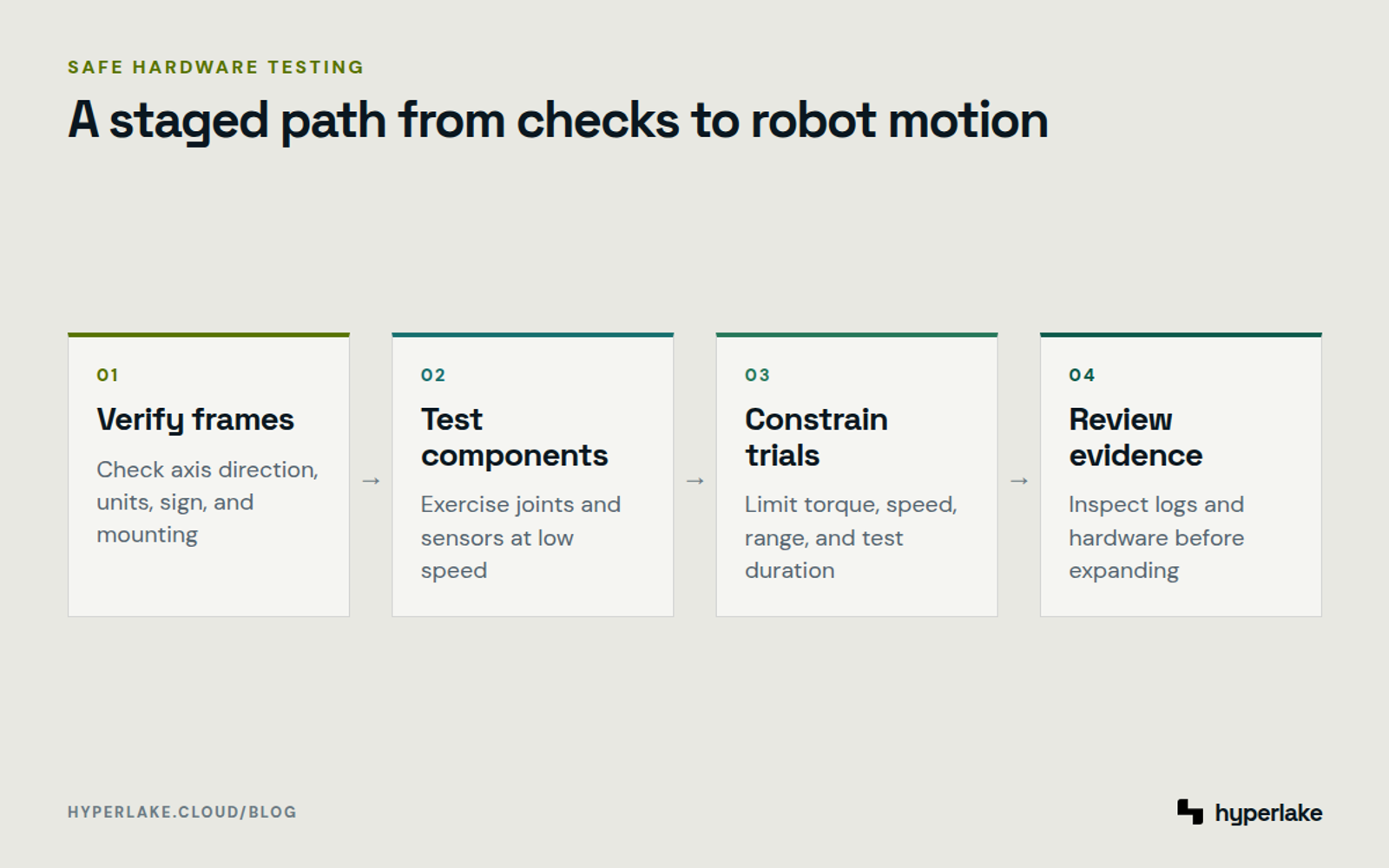

A practical sequence is:
- Verify sensor conventions. Confirm axis direction, units, sign, mounting orientation, timestamps, and expected readings while the robot is stationary and moved by hand.
- Test components independently. Exercise individual joints and sensors at low speed before running a whole-body controller.
- Constrain early trials. Apply conservative torque, velocity, position, and duration limits, and use suitable physical restraints where appropriate.
- Review evidence between tests. Inspect logs, state estimates, commands, alerts, and hardware before expanding the operating envelope.
Teams also need AI observability across model outputs, controller state, sensor streams, and infrastructure. Emergency stops remain important, but a failure that unfolds in a fraction of a second may be faster than a human reaction. Prevention therefore starts with validated inputs, bounded commands, and automatic limits.
Why can basic robot walking take months to achieve?
Basic walking is the visible result of many hidden engineering tasks, and progress is rarely linear. In this case, an expected one- or two-week transfer became seven months of active work and nearly a year of overall development before the robot could move forward and backward.
The elapsed time covered more than tuning a walking policy. It included finding discrepancies between simulation and hardware, diagnosing sensing errors, repairing mechanical damage, checking possible wiring damage, and repeating tests after each correction. A physically simple-looking behavior can therefore require sustained work across mechanical engineering, embedded systems, simulation, controls, data capture, and operations.
The useful planning lesson is not that every robot takes the same amount of time. It is that schedules should include validation, instrumentation, repair, regression testing, and iteration rather than treating successful simulation as the end of development.
Key takeaways
- Successful movement in simulation does not prove that the same controller is safe or stable on physical hardware.
- Coordinate frames and IMU axis conventions must be validated before enabling high-energy movement.
- Progressive testing limits the consequences of incorrect models, sensor data, and control commands.
- Observability must connect sensor readings, state estimates, commands, and physical outcomes.
- Robot development schedules need room for diagnosis, repair, and repeated simulation-to-reality validation.
How Hyperlake helps
Hyperlake can provide a repeatable Physical AI development environment with simulation orchestration, training, data, and model services running in an organization’s or client’s infrastructure. It can integrate tools such as NVIDIA OSMO, Omniverse, Isaac Sim, and Isaac Lab, subject to licensing and validated integration, while shared controls support observability, lifecycle management, access, and audit. To discuss the environment and policies required for a robotics workload, talk to our team.
Frequently asked questions
Can a robot that walks in simulation be expected to walk in reality?
No. Simulation demonstrates that a controller works under the model’s assumptions, not that every assumption matches the physical robot. Real hardware introduces sensor errors, timing differences, actuator limits, structural compliance, friction changes, and manufacturing tolerances, so teams must validate the controller progressively under constrained conditions.
How should IMU axis conventions be validated before deployment?
Teams should document the simulator, sensor, body, and world coordinate frames, then verify each axis and sign using known physical orientations and slow manual movements. They should also check units, timestamps, mounting transforms, and gravity direction before enabling autonomous motion. Recorded sensor values should agree with independently known robot poses.
Does sim-to-real training eliminate the need for hardware tests?
No. Techniques such as parameter variation can expose a controller to differences in mass, friction, latency, and sensor noise, improving robustness to expected variation. They cannot represent every wiring error, mounting mistake, damaged component, timing issue, or unmodeled physical interaction, so carefully bounded hardware testing remains essential.
