LLM Failover and Load Balancing

LLM failover and load balancing keep AI applications available by routing around outages, rate limits, slow responses, and unhealthy model endpoints.

Video thumbnail: LLM Failover and Load Balancing
Watch: LLM Failover and Load Balancing (3:09) · Video page

Every model API goes down eventually. LLM failover and load balancing use a shared gateway to spread model requests and route around endpoints that are unavailable, rate-limited or degraded. Weighted routing picks providers or models by cost, latency, capacity and capability, while failover chains and circuit breakers stop one external dependency from taking a whole AI application offline.

Model APIs fail in more ways than you'd expect: explicit errors, quota exhaustion, excessive latency and silent quality degradation. Centralizing resilience also spares every application team from writing its own inconsistent retry and routing logic.

What are LLM failover and load balancing?

LLM load balancing spreads requests across model endpoints. LLM failover redirects a request when the preferred endpoint can't serve it. A gateway usually handles both, because it can see every available route and apply one policy across applications.

Load balancing is about normal conditions: where should this request go? The policy might split traffic evenly, weight endpoints, or choose a route by cost, latency, available capacity or required model capabilities.

Failover is for when things go wrong. It defines an ordered chain of providers or models, sends the request to the next eligible option after a qualifying failure, and hands the fallback response back to the application when the alternate succeeds. Our view is that model APIs should be treated as components of a broader compound AI system. Assume they're fallible, because they are.

With these controls in a gateway, applications call one stable interface and carry no provider-specific routing logic. Policies can cover multiple applications and models, and no application team has to rewrite its code to get them.

Why does LLM traffic need specialized routing?

Because LLM endpoints break and saturate in ways ordinary stateless API balancing doesn't fully handle. A router has to account for rate limits, long and variable response times, model capabilities, response quality and provider-specific quirks.

A conventional service usually signals trouble clearly, with something like HTTP 503. An LLM endpoint might return HTTP 429 instead, because a per-key or per-account limit was hit. The causes differ, but either one can make the route unusable for a while.

Then there's the hard case. Providers can degrade without returning any error at all. Responses get unusually slow, or start failing application-level quality checks, and that's much harder to spot and route around. Catching it takes latency telemetry, outcome monitoring and, where it makes sense, model evaluation signals. Status codes alone won't do it.

You can sometimes spread traffic across multiple API keys, if quotas apply independently and the provider's terms allow it. Multiple keys won't get you past an account-level ceiling, though. Weighted routing across providers is the other option: traffic is allocated in proportion, instead of pretending every endpoint has the same cost, latency, capacity or capability.

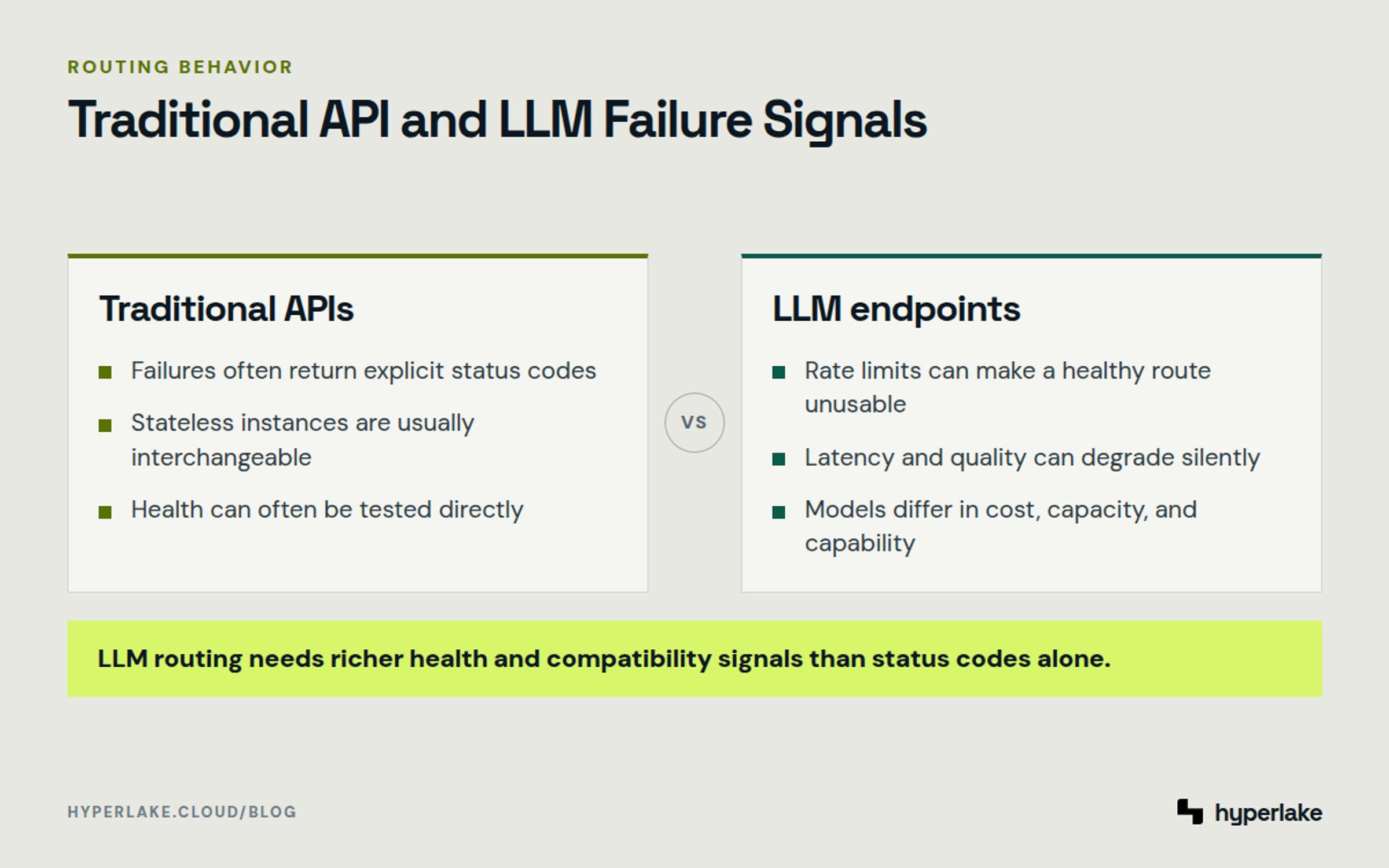

Diagram: Traditional APIs show explicit errors, while LLM endpoints can also hit limits, slow down, or degrade in quality.

How do failover chains and circuit breakers work?

A failover chain tries eligible routes in a set order. A circuit breaker stops sending normal traffic to an endpoint that's already marked unhealthy. Used together, they cut repeated waits on a provider you know is failing, and recovery happens on its own.

A request typically goes like this:

  1. Try the preferred route. The gateway picks the primary provider or model under the current routing policy.
  2. Classify the outcome. It checks for timeouts, retryable errors, rate-limit responses and other configured failure conditions.
  3. Use the next route. If the failure qualifies, the gateway tries the next compatible option in the chain.
  4. Return or record failure. A successful fallback comes back through the same application interface. If every eligible route fails, the gateway returns a controlled error.

Plain retries don't cut it when an endpoint stays unhealthy. Without a circuit breaker, each new request may sit through the same timeout before switching routes, which adds latency and burns resources.

A circuit breaker counts failures over a rolling window and opens once a configured threshold is crossed. While it's open, the gateway short-circuits ordinary requests away from that endpoint. Synthetic health checks probe for recovery, and the route rejoins service according to the configured policy.

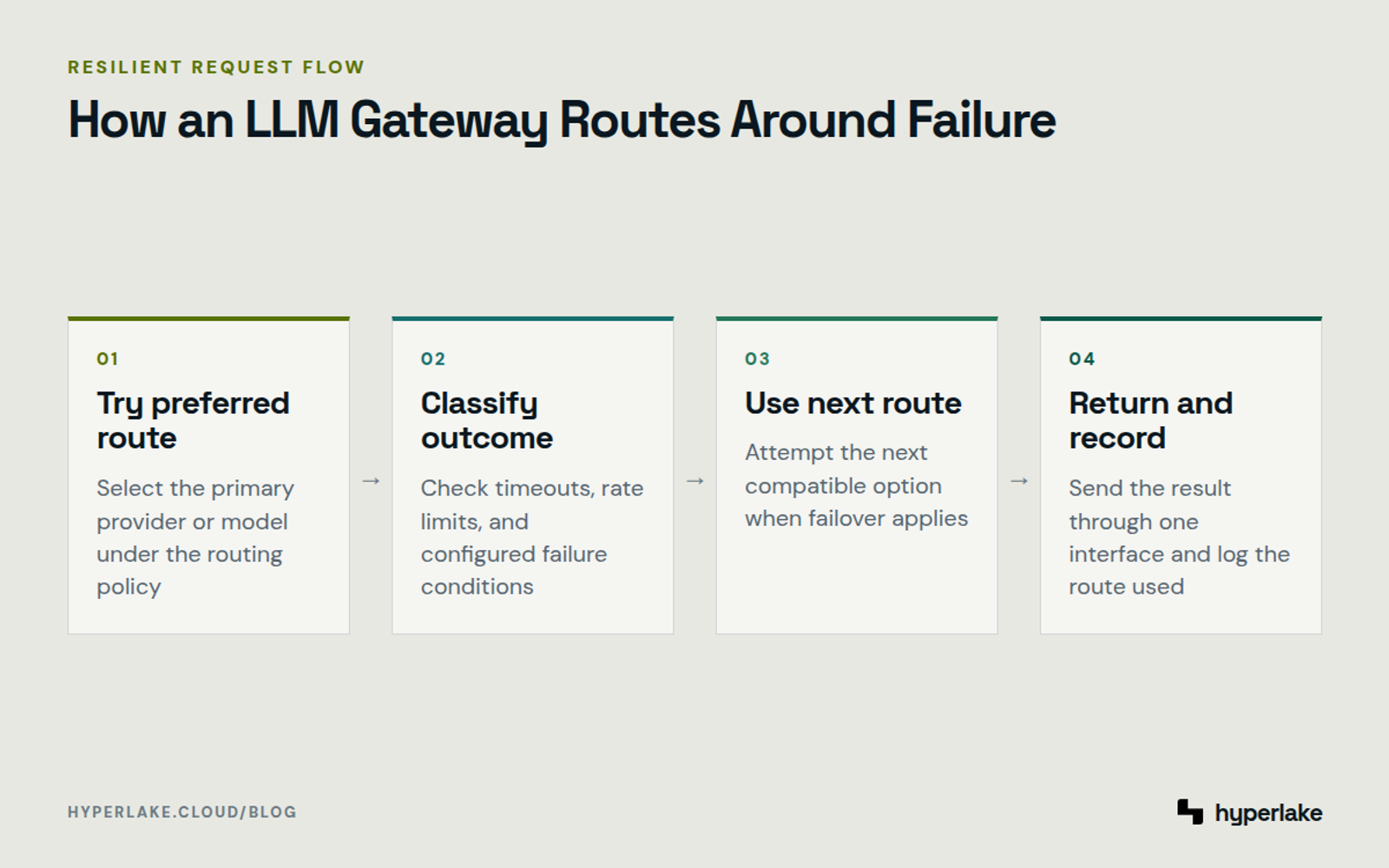

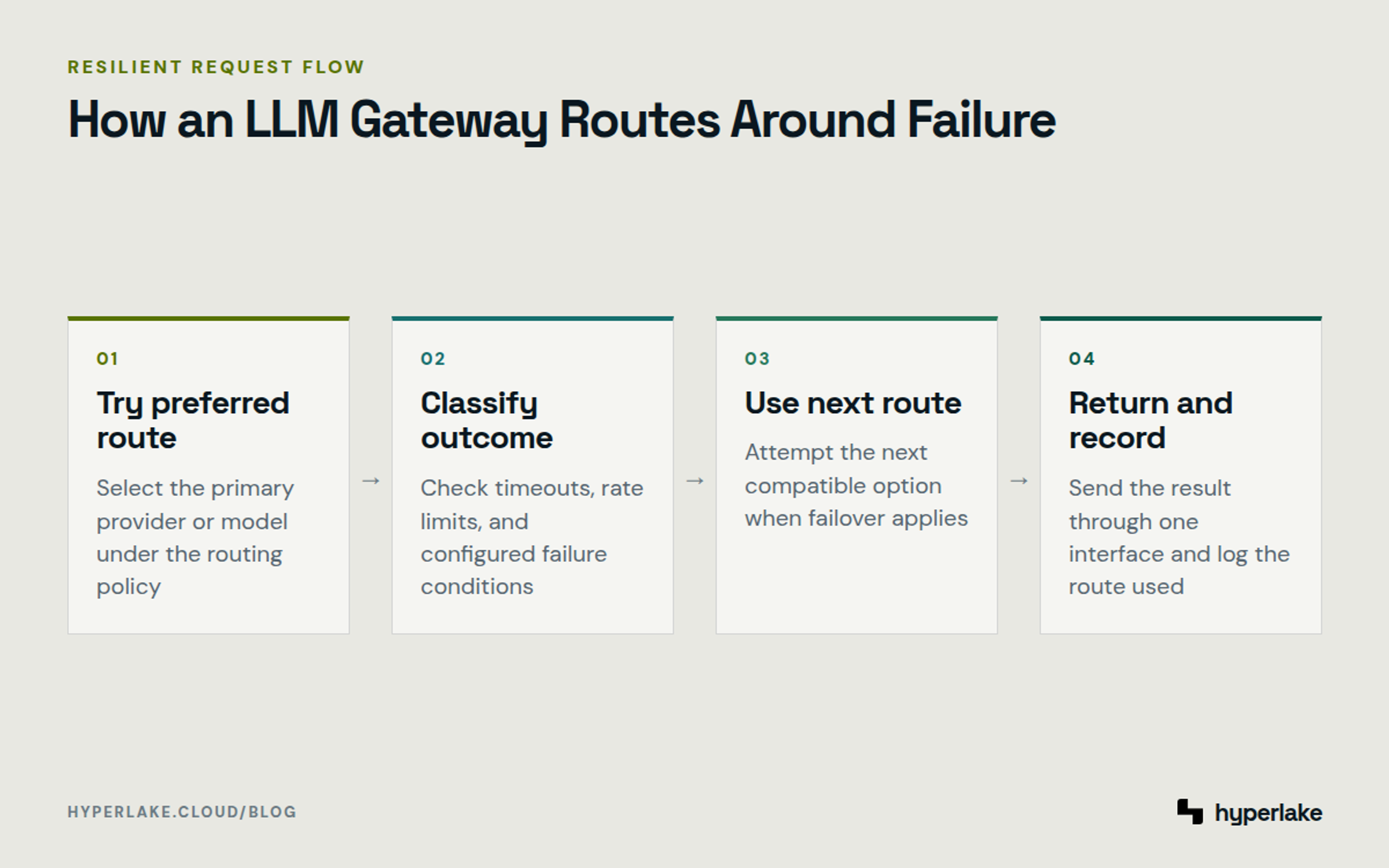

Diagram: An LLM gateway tries a preferred route, classifies failure, uses a fallback, and records the outcome.

How should teams choose an LLM routing policy?

Build it around what the application needs. Provider names are the least interesting part. The policy has to say which models are compatible, what counts as failure, when fallback is safe and which trade-offs matter for each workload.

Inputs worth deciding on:

  • Capability. Confirm fallback models support the required context, structured outputs, tool use, modalities and safety controls.
  • Reliability. Define which errors, timeouts, rate limits, latency thresholds or evaluation failures should change routing.
  • Economics. Weight routes by actual infrastructure or provider costs and watch spend by model, application and customer. AI cost observability makes those decisions visible.
  • Data policy. Make sure every fallback route meets the same residency, privacy, identity and access requirements as the primary.
  • Retry safety. Don't duplicate consequential tool calls or other non-idempotent actions when retrying an agent request.

Then break it on purpose. Test policies with simulated timeouts, rate limits, malformed responses and complete route exhaustion. Record which endpoint served each request, so operators can investigate incidents, compare behavior and adjust weights from evidence instead of guesswork. Good LLM failover and load balancing is mostly this unglamorous testing.

How Hyperlake helps

Hyperlake lets you assemble, deploy and govern models, applications, data services and supporting tools in infrastructure you or your clients control. It can serve open models through KServe, subject to the deployment and validated integration, while shared identity, policy, observability and lifecycle capabilities support a governed operating environment. To talk through how this fits a private LLM or client-owned AI deployment, talk to our team.

Frequently asked questions

What happens if every model in the failover chain is unavailable?

The gateway should stop once it has exhausted the eligible routes and return a controlled, observable error, not retry forever. The application can then degrade gracefully by queueing work, showing a temporary-unavailability message or falling back to a non-model workflow. Operators need enough route and failure data to diagnose the incident, without exposing sensitive infrastructure details to end users.

Can any LLM serve as a fallback for another model?

Not any model. A fallback has to support the application's required context size, input and output formats, tool-calling behavior, modalities, latency target and governance constraints. Even technically compatible models can behave differently, so evaluate fallback quality and validate application behavior before adding a model to a production chain.

How can a gateway detect an LLM endpoint that is degraded but not down?

By watching latency, timeout frequency, malformed outputs, application-level success signals and configured evaluation results. The gateway compares those signals with rolling thresholds and reduces or stops traffic when degradation sticks around. Quality is workload-specific, so it needs observable criteria; an HTTP 200 response isn't proof that the answer was acceptable.
